In the mobile display industry, TFT LCD display modules remain one of the most widely used screen technologies for smartphones. Thanks to their mature manufacturing ecosystem, stable display performance, and high compatibility across devices, TFT displays continue to power millions of mobile devices worldwide.

As a professional smartphone screen supplier integrating R&D, manufacturing, and global distribution, we focus on delivering reliable TFT display modules through strict component selection and manufacturing control.

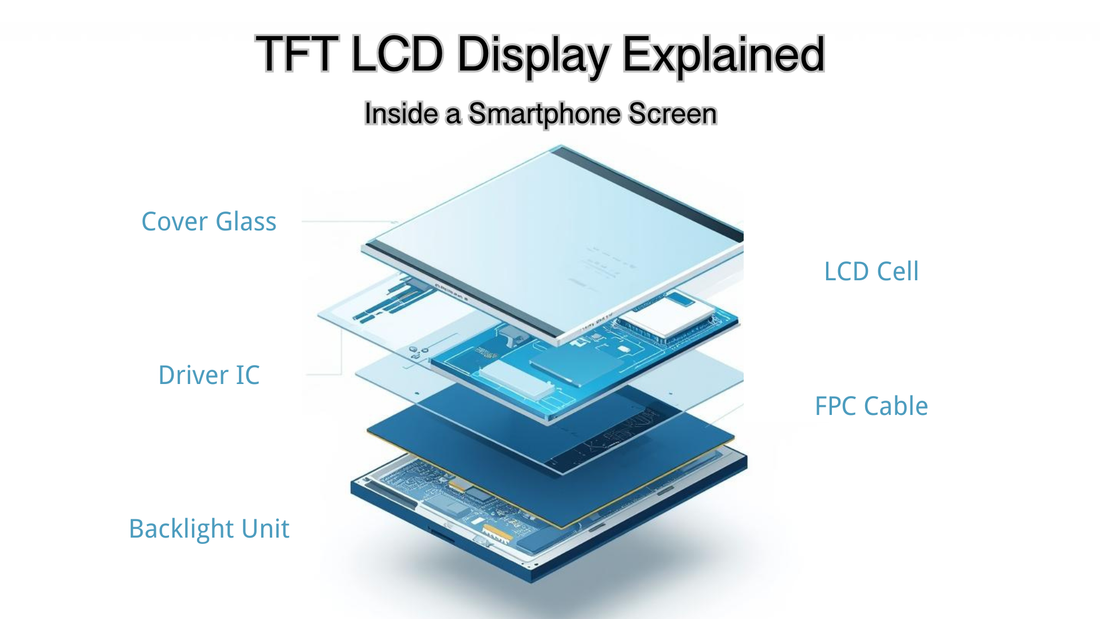

A high-quality TFT smartphone display is composed of five critical components:

  • LCD Glass (Cell)
  • Driver IC
  • FPC Flexible Circuit
  • Backlight Unit
  • Cover Glass

Each component directly affects the display quality, durability, power efficiency, and long-term reliability of the screen. Below is a technical breakdown of how these components work together to create a complete TFT display module.



1. LCD Glass (CELL): The Core Display Layer

LCD glass is the foundation of the TFT display module, acting as the visual layer where images are generated.

Most modern smartphone TFT modules adopt IPS (In-Plane Switching) LCD technology, which offers several advantages over traditional TN panels:

  • Wider viewing angles
  • Better color accuracy
  • Faster response time
  • Reduced color shift at extreme angles

These characteristics make IPS LCD ideal for smartphones used for video playback, gaming, and daily applications.

Structurally, the LCD cell mainly consists of three layers:

  • Color Filter (CF) – Generates RGB color information
  • Array Substrate (TFT Array) – Controls pixel switching
  • Liquid Crystal Layer (LC Cell) – Modulates light to create images

Together, these layers form the active matrix TFT structure, which enables precise control of each pixel on the display.



2. Driver IC: The Control Center of the Display

The Driver IC (DDIC) functions as the control hub of the display module. It converts signals from the smartphone motherboard into instructions that drive the pixels on the LCD panel.

Driver IC performance directly impacts:

  • Display resolution
  • Refresh performance
  • Power consumption
  • Touch responsiveness

Depending on product design requirements such as resolution (FW / HD / FHD+), screen ratio, and bezel size, different driver IC architectures can be used.

Down-bond Driver IC (Narrow Bezel Design)

Modern smartphone displays often use down-bond driver IC technology, which places the IC in a lower position on the panel. This design helps reduce the bottom bezel ("chin") and enables higher screen-to-body ratios.

TDDI Integrated Architecture

Many TFT modules now adopt TDDI (Touch and Display Driver Integration) technology. This integrates the touch controller and display driver into a single chip.

Benefits include:

  • Reduced component count
  • Simplified module structure
  • Faster touch response
  • Improved signal coordination

The driver IC is mounted onto the LCD glass through COG (Chip On Glass) bonding, which requires precise control of temperature, pressure, and bonding time to ensure reliable electrical connections.

This process helps prevent common defects such as:

  • No display
  • Line defects
  • Image distortion

3. FPC Flexible Circuit: Signal Transmission Backbone

The FPC (Flexible Printed Circuit) acts as the connection bridge between the display module and the smartphone motherboard.

It is responsible for transmitting:

  • Display signals
  • Touch signals
  • Power supply

High-quality FPC materials and components are essential for long-term display reliability.

Typical materials include substrates from suppliers such as:

  • Taiflex (Taiwan)
  • SK (Korea)

Electronic components integrated into the FPC include:

  • Capacitors and resistors from Murata, Samsung, or Yageo
  • Diodes from manufacturers such as Changjiang Electronics

The manufacturing process of FPC includes multiple precision steps:

  • Material cutting
  • Drilling
  • Copper plating
  • Circuit printing
  • Electrical testing

Special protective layers and EMI shielding films are often applied to the bending areas of the FPC to improve durability and reduce electromagnetic interference.

4. Backlight Unit (BLU): The Light Source of the Display

Unlike OLED displays, LCD panels do not emit light themselves. Instead, they rely on a backlight unit (BLU) to provide illumination.

The typical backlight structure includes:

  • LED light bars
  • Light guide plate (LGP)
  • Diffuser sheet
  • Brightness enhancement films

The LED light source determines the brightness and color characteristics of the display. Many smartphone displays use warm white LEDs, which produce a slightly reddish white tone that is more comfortable for the human eye and helps reduce visual fatigue.

The light guide plate converts the edge-mounted LED light into evenly distributed surface illumination.

Additional optical films then improve:

  • Light uniformity
  • Brightness efficiency
  • Color consistency

To ensure thermal stability, graphite heat dissipation layers are often added to help dissipate heat generated by the LEDs.

5. Cover Glass (CG): Protection and User Interaction Layer

The cover glass is the outermost protective layer of the display module.

It protects the internal components from:

  • Scratches
  • Impact damage
  • Environmental exposure

High-quality cover glass is typically made from chemically strengthened glass produced using ion-exchange technology. This process creates a compressive stress layer that increases surface hardness.

Typical strength can exceed 500 MPa, improving durability in daily smartphone use.

The surface is also coated with AF (Anti-Fingerprint) nano coating, which provides:

  • Oleophobic properties
  • Smoother touch interaction
  • Reduced fingerprint residue

Depending on smartphone design requirements, the cover glass may be manufactured in several shapes:

  • 2D flat glass
  • 2.5D curved edges
  • 3D hot-bent glass

The cover glass is bonded to the display module using OCA (Optically Clear Adhesive), which ensures high transparency (>90%) while maintaining structural stability.

Manufacturing Process and Quality Control

A high-quality TFT display module is not simply the combination of its components. It also depends on precision manufacturing and strict quality control throughout the production process.

Key processes include:

  • Glass panel cutting
  • Plasma surface cleaning
  • COG / FOG bonding
  • Backlight assembly
  • Optical lamination
  • Final functional testing

Additional materials such as polarizers, ACF conductive film, and OCA adhesives are also carefully selected to ensure long-term stability and display performance.

Professional TFT Display Solutions

As a specialized supplier in the smartphone display industry, we focus on delivering both standard TFT modules and customized display solutions.

Our engineering capabilities allow us to support customers with:

  • Custom display sizes
  • Driver IC configuration
  • Resolution optimization
  • Structural customization for specific devices

By combining advanced manufacturing processes with strict quality standards, we aim to provide reliable, high-performance TFT display modules for smartphone brands and device manufacturers worldwide.
